MMA03-4001

MMS760xxx-48-R2, MMS760xxx-48-C2, MMP760xxx-R2, MMP760xxx-C2, MMA01-1001, and MMA01-1002 Connector Suite

Overview

MMA03-4001

MMA03-4001

MMS760xxx-48-R2, MMS760xxx-48-C2, MMP760xxx-R2, MMP760xxx-C2, MMA01-1001, and MMA01-1002 Connector Suite

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The MMA03-4001 is a connector suite that contains connectors and crimp terminals, which allows the user to connect EZmotion smart motors or driver modules to the power supply, field bus, and I/O interface.

Manufacturer Part Number	Description	Quantity
KF12EKD-2.5-6P-1G	2.5mm pitch, 6-position male connector	1
KF12EKD-2.5-8P-1G	2.5 pitch, 8-position male connector	1
ZER-04V-S	1.5mm pitch, 4-position male connector	2
SZE-002T-P0.3	Socket contact tin 24-20 AWG crimp	8

Features & Benefits

KF12EKD-2.5-6P-1G and KF12EKD-2.5-8P-1G Specifications:
- 150V/130V Voltage Rating (UL/IEC)
- 5A/10A Current Rating (UL/IEC)
- 20mΩ Contact Resistance
- 20 to 24 AWG Wire Diameter
- -40°C to +105°C Temperature Range
ZER-04V-S Specifications:
- 100V Voltage Rating
- 2A Current Rating
- 20mΩ Contact Resistance
- 24 to 30 AWG Wire Diameter
- -25°C to +85°C Temperature Range
- SZE-002T-P0.3 Mating Crimp Terminal

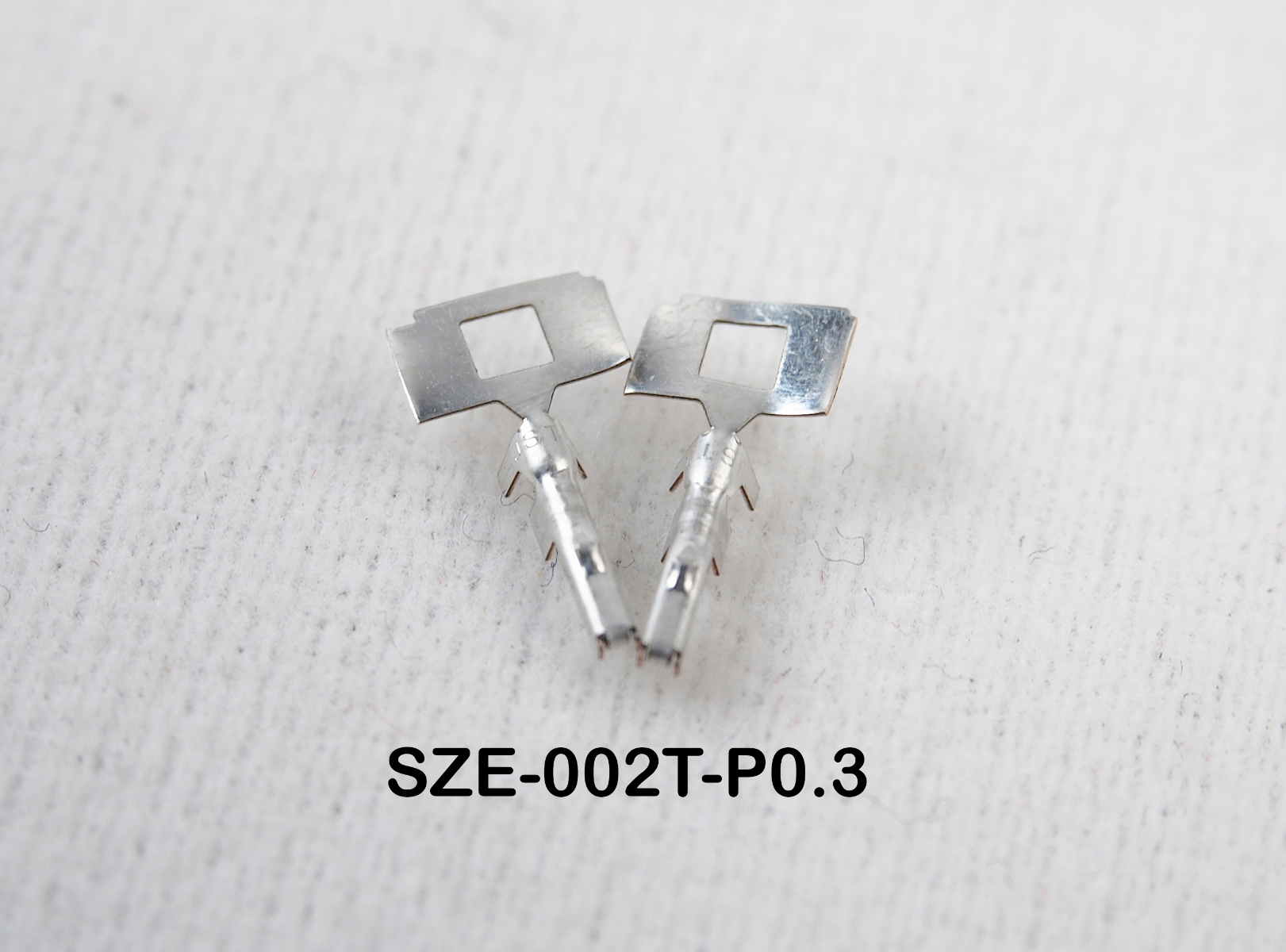

SZE-002T-P0.3 Mating Crimp Terminal

IN STOCK

Ships in 5 business days

Quantity Price
1+

$6.00 /unit

Product Specs
