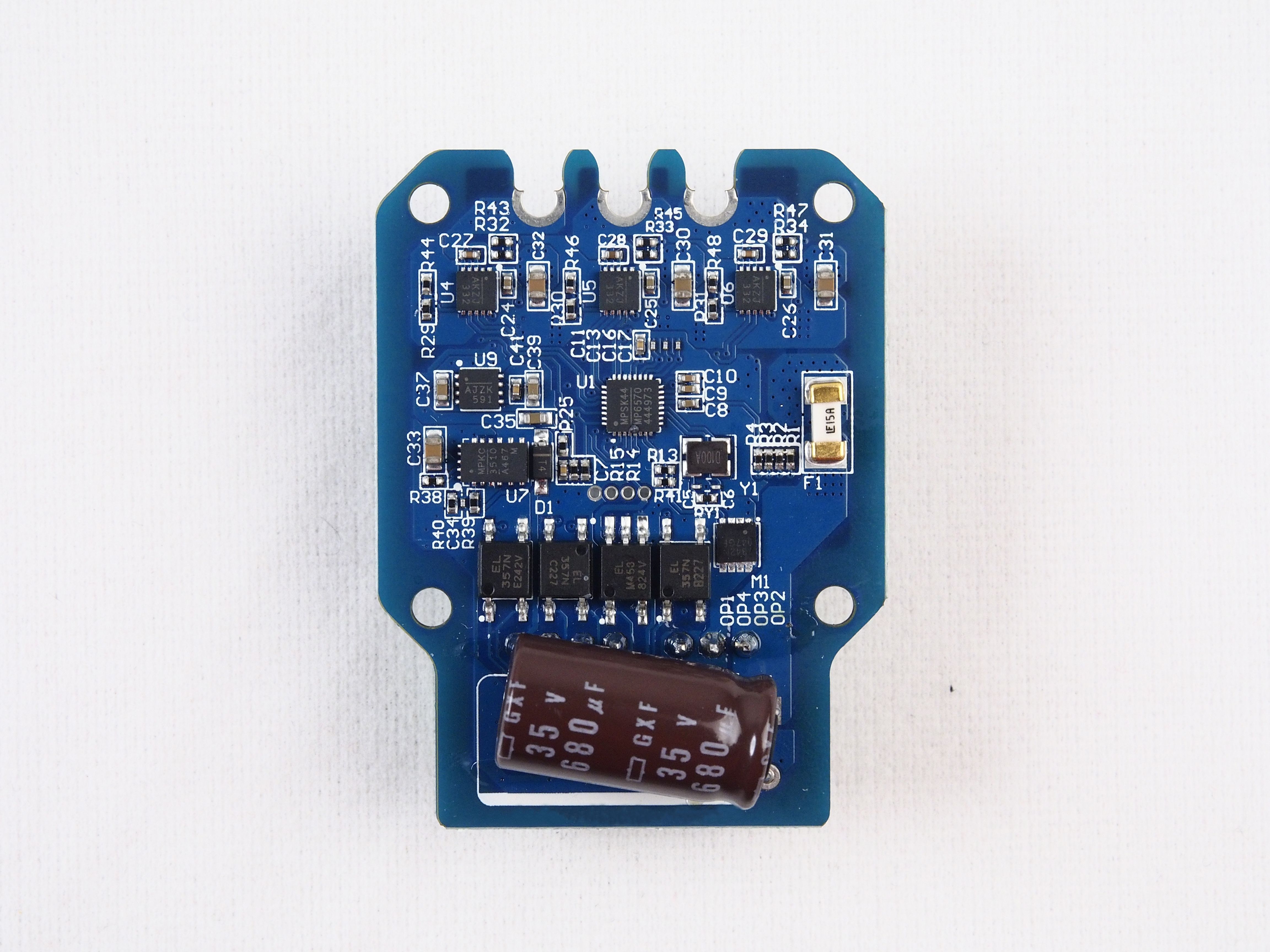

The MMP742052-36-R1-1 is part of a family of smart motor driver modules for servo motor applications. This module is designed to fit 40mm and 42mm (NEMA 17) motors. It integrates an angular sensor, servo controller, and power stage components.
The MMP742052-36-R1-1 supports three control modes: profile position (PP), profile velocity (PV), and profile torque (PT).
MotionLAB is an easy-to-use GUI software that allows users to flexibly optimize the design online via the RS-485 control interface. The parameters are saved in the module’s non-volatile memory (NVM). The GUI and its user guide are available for download at EZmotion.co.
Show moreShow less
Validate your login
Log in to your account
Create New Account
Forgot Password
Features & Benefits
PRS Series for RS-485 and Step/Direction Control Interface
PSD Series for Step/Direction Control Interface
18V to 36V Input Voltage (VIN) Range
38W to 105W Continuous Output Power (POUT)
7A to 5A Continuous Output Current (IOUT)
5A to 15A Peak Output Current (IOUT_MAX)
3° Position Resolution
Three Different Control Modes: Profile Position (PP), Profile Velocity (PV), and Profile Torque (PT)
Driver Module Temperature Sensing
Operating Temperature: 0°C to 70°C (Power Derated > 40°C)
Storage Temperature: -40°C to +125°C
Applicable Motor Size: 40mm and 42mm (NEMA17) Motors
